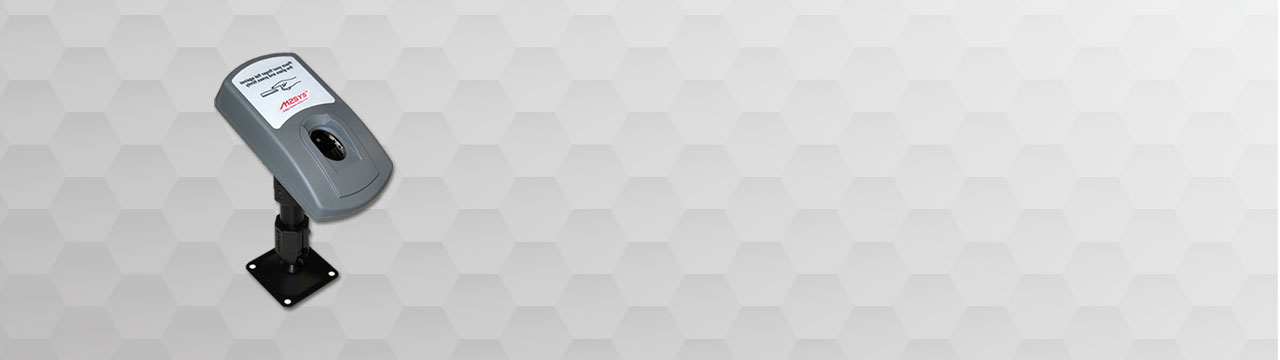

The M2-S™ fingerprint scanner
A wealth of experience across many real-world implementations has led us to extensively test and support multiple fingerprint scanning technologies, ensuring that you have the right options for success.
The M2-S™ fingerprint scanner was designed for use with the M2SYS hybrid biometric platform™ and is also compatible with many standard fingerprint software development kits (SDKs). Our most durable fingerprint scanner, the M2-S™ ergonomic design forces perfect finger placement with each fingerprint scan to produce an optimized fingerprint image with a maximum captured surface area.
This fingerprint scanner was designed around the Digital Persona U.are.U 4500HD (high-durability) fingerprint sensor — image capture, self-calibration, and image data encryption are controlled by its on-board electronics. The M2-S™ fingerprint scanner provides reliable, accurate, and virtually fool-proof fingerprint recognition. The “smart-touch” scanning area enables the fingerprint reader to reject latent and counterfeit fingerprint images.
M2-S™ is an affordable USB fingerprint device with a rugged design and durable frame, providing sturdiness unmatched by other fingerprint scanners in the same price category. In addition, the bottom of this fingerprint scanner has a mounting hole, allowing it to be easily secured to any surface.
Certifications: RoHS, WEEE, UL, USB, WHQL
Features of M2-S™ fingerprint scanner, benefits of M2-S™ fingerprint scanner
- Small form factor
- Excellent image quality
- Encrypted image data
- Latent print rejection
- Counterfeit image rejection
- Rotation invariant
- Works well with dry, moist or rough fingerprints
- Mountable to 6″ adjustable metal stand
- Designed for use with all solutions of M2SYS
- Compatible with many standard fingerprint SDK’s
Benefits
- Works well with dry, moist or rough fingerprints
- Rugged design
- Wider sensor for bigger fingers to capture
- Inside at the heart digital persona U. are U. 4500HD sensor is used
- Self-calibration
- Image data encryption
- Mountable to 6” adjustable, metal stand
- Provides 512 dpi Image
- USB 2.0 connection
Technical specifications
| Item | Specification |
| Interface | USB 2.0 |
| Type | Optical |
| Size | 1″ (D) x 2.75″ (W) x 5.5″ (H) |
| Active sensing area | 0.58” (W) x 0.71” (L) |
| Calibration | Device self-calibrates |
| Resolution | 512 dpi |
| Operating system | Windows XP, Vista, Windows 7, 2000, Me, Server 2003 |
| Warranty | 1 year mechanical defect |
| Weight | 7 oz. (without cable) |
| Compatibility | USB Specifications 1.0, 1.1, 2.0 |
Case studies
Product: Bio-SnapOn hybrid biometric Platform™
Client: City of Las Veags
Use: Membership management
Challenge:
- High cost for PVC cards and related printing expenses used for existing enterprise applications that manage their client database, point of sale operations, and course registration information
- Create a concrete audit trail for safety
- Institute a new check-in system that did not sacrifice speed or accuracy
Solution:
- Integrating Bio-SnapON with their existing enterprise software at multiple recreation centers to replace their existing PVC card system for member check-in
Benefits:
- Prevent access of unauthorized personnel into facility
- $100k in deferred product purchases
- $15 – $20k annual savings
| Download M2-S™ fingerprint reader brochure | |
 M2-S™ fingerprint reader brochure in English
Download now |
|
