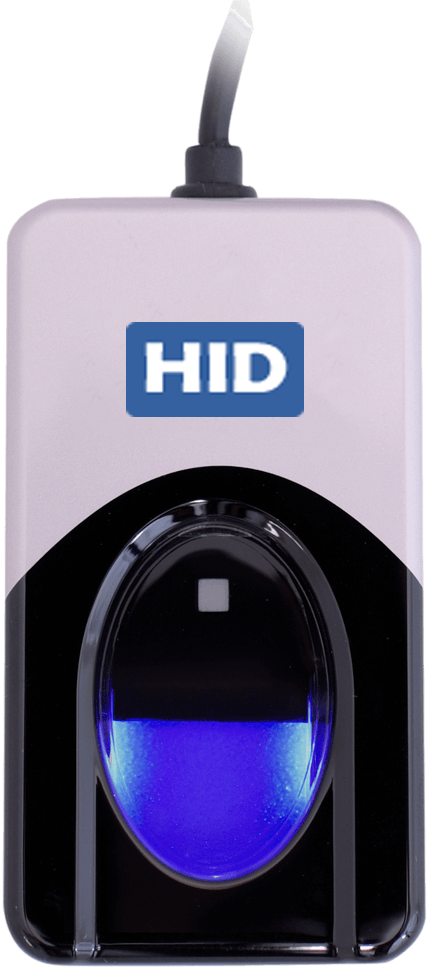

The HID DigitalPersona 4500 Fingerprint Reader (formerly Crossmatch U.Are.U 4500) uses an optical fingerprint scanning technology for superior image quality and product reliability. The combination of a U.are.U 4500HD (High Durability) Fingerprint Reader with our CloudABIS fingerprint matching system produce a reliable solution for fast and accurate person identification.
The HID® DigitalPersona 4500 Fingerprint Reader is a sleek, powerful fingerprint identity machine. With an Executive-class style and feel, the HID® DigitalPersona 4500 is perfect for power users and shared environments. The HID® DigitalPersona 4500 fingerprint scanner works seamlessly with the M2SYS CloudScanr™ API and CloudABIS™ biometric matching system.
The HID® DigitalPersona 4500 is a USB device that features perfect finger placement with each fingerprint scan to produce an optimized fingerprint image with the most surface area. It radiates an attractive blue glow, providing an unobtrusive presence in low-light environments. For improved user feedback, a red “flash” indicates that a fingerprint image has been recorded.
The reader is the natural choice for those that want and need the very best. Its sleek and compact design saves desk space, yet its good heft and unique undercoating resist unintentional movement. The reader provides reliable, accurate, and practically fool-proof fingerprint recognition. The “smart-touch” scanning area enables the fingerprint reader to reject latent and counterfeit fingerprint images.
The HID is built on the latest optical fingerprint reader technology with a highly durable sensor for superior image capture, self-calibration, and image data encryption which are all controlled by its on-board electronics.
HID® DigitalPersona 4500 is an affordable USB fingerprint device with a rugged design and durable frame, providing sturdiness unmatched by other fingerprint scanners in the same price category. Whether you are a corporate customer or a system integrator, HID’s DigitalPersona 4500 fingerprint reader with the M2SYS biometric software solutions are a powerful combination.
Certifications: RoHS, WEEE, UL, USB, WHQL
The DigitalPersona 4500 Fingerprint Reader can quickly capture vivid fingerprint images using a unique, proprietary algorithm.
Touch it from any direction and the reader will provide a high quality image for reliable matching.
A high-quality metal casing weighted to resist unintentional movement provides reliable performance over the widest population of users.
Desktop PC security Custom applications Mobile PC security
HID® DigitalPersona 4500 Fingerprint Reader can be set up and used with any custom identity management solution built using the M2SYS eGov platform.
| Item | Specifications |
| Interface | USB 2.0 Full-speed high power device |
| Reader type | Biometric |
| Dimensions | Standard outline (approximate): 60.2 mm x 32.4 mm x 11.0 mm |
| Scan capture area | 14.6 mm (nom. width at center); 18.1 mm (nom. length) |
| Operating temperature | 0° – 40° C |
| Scan data | 8-bit grayscale (256 levels of gray) |
| Compatibility | USB 1.0, 1.1 and 2.0 (Full Speed) specifications |
| Standards compliance | RoHS, UL, USB, WHQL |
| Weight | 106 gram |
| LED / Beep | LED |
| Standalone/ Networkable | Networkable |
