Dual iris capture camera

An integral part of any comprehensive biometric identity management program, the Cross Match® I Scan 2 Iris Camera brings rapid mobile enrollment, identification, and verification through iris capture applications to any security installation.

Dual Iris Capture Camera
Dual Iris Capture Camera

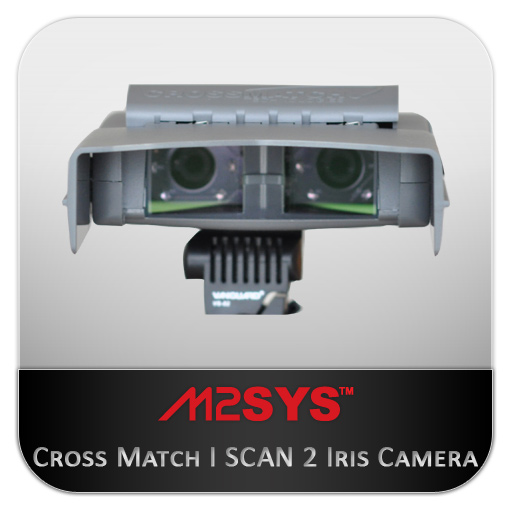

Iris reader – cross match I SCAN 2 iris camera

A perfect iris reader for mobile deployments, the Cross Match® I Scan 2 iris recognition camera enhances identification and security programs with fast and reliable iris recognition performance. A durable and compact dual iris reader, I Scan 2 is an integral part of any comprehensive identity management program. With the I Scan 2 iris reader, organizations can extend their security installations by adding rapid mobile enrollment, identification, and verification through iris capture applications. The USB-powered handheld iris reader is ANSI INCITS 379-2004 and ISO/IEC 19794-6 compliant— producing the highest quality iris images. The iris reader features image finding and stabilization, pupil segmentation, image quality assessment, and Auto Capture™ functionality for quick and easy image collection. This iris reader is one of the most advanced and easy-to-use iris capture solutions on the market.

Certificates: ANSI INCITS 379-2004 and ISO/IEC 19794-6

cross match iris reader

Have a question in mind or need more info? Tell us about it and an account executive will respond shortly.

I SCAN 2 iris reader’s features & benefits

Features

  • Dual iris capture in less than 10 seconds
  • Automatic image capture
  • Durable housing
  • Fold open visor accurately sets optimum focus
  • Operates in total darkness

Benefits

  • Accuracy: Most accurate industry hardware modality
  • Stability: Iris patterns do not change
  • Fast: Unmatched speed for 1:N matches
  • Scablable: Ideal for large scale ID applications
  • Non-invasive: No physical contact

Technical specifications

Category Description
Dimensions 6″ X 1.9″ X 6″ (152mm X 48mm X 152mm)
Weight 1.1lbs (.5 kg)
Spatial resolution 4.0lp/mm at 60% or higher contrast
Power supply Via USB cable on a USB-2.0 compliant port Cable
Pixel resolution 16.7 pixels/mm (>200 pixels over iris diameter of 9.5 – 13 mm)
Housing • PC/ABS blend
• Attached visor to set optical distance
• Retractable ambient light shield
Scanned FOV ISO/IEC 19794-6 Standards Compliant Coverage
Operating temperature 32°F –120°F (0°C – 50°C)
Storage temperature .4°F – 140°F (.20° – 60°C)
Download cross match I SCAN 2 iris camera brochure
download-Cross-Match-I-Scan-2-in-spanish
Cross match I SCAN 2 iris camera brochure in English
Download now
